Home > Fiber Optic Patch Cord >

Length Can be customized SC/PC-FC/PC OM3 3.0mm aqua fiber optic patch cord customized

Product Categories
Shenzhen CY COM Product Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

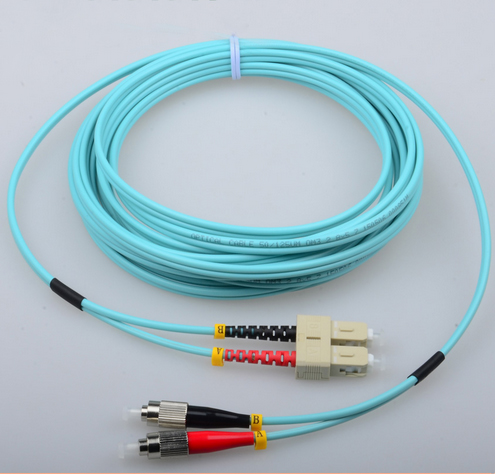

Length Can be customized SC/PC-FC/PC OM3 3.0mm aqua fiber optic patch cord customized

  • 1
  • 2

Brand Name : CY COM

Model Number : SC-FC OM3 DX Patch Cord

Certification : ISO9001:2015 , RoHS

Place of Origin : Shenzhen , China

MOQ : 20pcs

Price : USD3.0-4.5/PCS

Payment Terms : L/C,T/T,Western Union payments for offline orders.

Supply Ability : 1 million connector / month

Delivery Time : 3-15 days

Packaging Details : PE bag

Cable Jacket : OFNP

Color : Aqua

Length : Can be customized

Contact Now


Corning cable,SC/PC-FC/PC OM3 3.0mm aqua fiber optic hybrid patch cord,OFNP out jacket

Specifications :
Parameter Unit FC, SC, LC/ Armoured fiber patch cord ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable diameter mm Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 φ3.0, φ2.0, φ0.9

Applications :

♦Local Area Network
♦Wide Area Network
♦CATV,LAN,MAN WAN Network
♦FTTX System
♦Test Instruments


Order information:

  1. Type: SX/DX optional
  2. Ferrule end face: APC/UPC/PC
  3. Diameter: 0.9, 2.0, 3.0mm
  4. Length:1m, 2m, 3m to 120m
  5. Fiber: SM/OM1/OM2/OM3/OM4
  6. Material of jacket: PVC/LSZH/OFNR

Length Can be customized SC/PC-FC/PC OM3 3.0mm aqua fiber optic patch cord customized
