Customized Armored Fiber Optic Patch Cord FC / SC / ST / LC Connector

  • 1
  • 2

Brand Name : CY COM

Model Number : Armored Patch Cord

Certification : ISO9001:2015 , RoHS

Place of Origin : Shenzhen , China

MOQ : 20pcs

Price : USD3.0-4.5/PCS

Payment Terms : L/C,T/T,Western Union payments for offline orders.

Supply Ability : 1 million connector / month

Delivery Time : 3-15 days

Packaging Details : PE bag

Cable material : PVC,LSZH,OFNP

Structure : Simplex or Duplex

Color : Yellow,blue,black,can be customized

Length : Can be customized

Contact Now

Customized Armored Fiber Optic Patch Cord FC / SC / ST / LC Connector

Raw material​s:

  • Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
  • Inner frame: PBT, white (RoHS)
  • Ferrule: zirconium oxide ceramic material, white (RoHS)
  • Ferrule’s handle: copper (C3602), nickelage (RoHS)
  • Mechanical spring: stainless steel (RoHS)
  • Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
  • Snap ring: aluminium alloy 6063 (RoHS)
  • Ring: copper alloy (HPD62), nickelage (RoHS)
  • Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
  • Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNP

Features:

  • In-line with Telcordia GR-326-CORE standard
  • Low insertion loss, high return loss, high reliability
  • Good repeatability, interchangeability
  • Any diameter of fiber can be chose, 0.9, 2, 3mm ,10g fiber, low smoke and zero halogen can be chosen

Application:

  • Fiber-optic communication system
  • Fiber-optic data transmission
  • LAN, CATV
  • Fiber-optic testing system

Specification:

Item Unit FC,SC,LC ST,MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC UPC PC PC PC UPC PC PC UPC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310,1510 1310,1510 1310,1510 1310,1510
Exchengeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable Diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9

Order information:

  • For example: SC/UPC-SC/UPC-SM-SX-2.0-5M-LSZH Armored patch cord
  • Type: SX/DX optional
  • Ferrule type: APC/PC
  • Diameter: 0.9, 2.0, 3.0mm
  • Length: 1, 2, 3 to 120m
  • Fiber: SM/OM1/OM2/OM3/OM4
  • Material of jacket: PVC/LSZH/OFNP

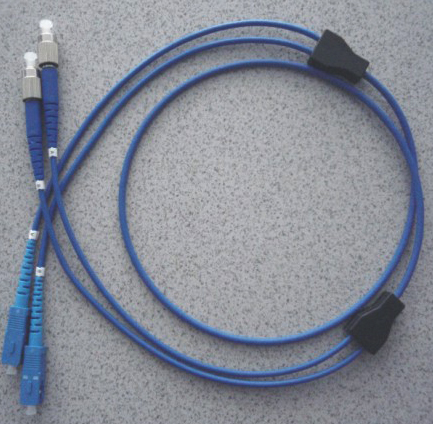

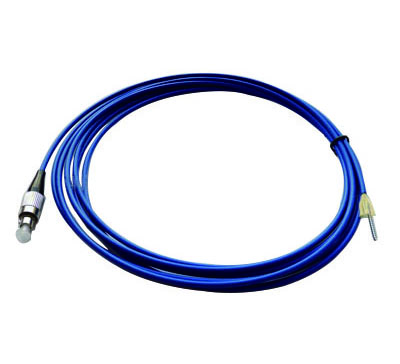

Customized Armored Fiber Optic Patch Cord FC / SC / ST / LC ConnectorCustomized Armored Fiber Optic Patch Cord FC / SC / ST / LC Connector
