Screw-thread coupling mechanism single or duplex mode available DIN Fiber Optic Patch Cord
DIN Fiber Optic Patch Cord
DIN fiber optic patch cord is a fiber optic cable used to attach one device to another for signal routing.
Features & Availabilities
Screw-thread coupling mechanism
Singlemode and multimode available
PC and APC polishing available
Interferential parameters available
Hybrid patch-cords are available upon request
Pigtail available
Application:
1.FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
2.Video transmission , Data transmission
3.Active Device Termination
4.Premise Installations
5.Telecommunication and Data processing Networks
6.Industrial, medical & military
7.Systems Integration for Long Haul, Metro and Access Network
Specifications
Insertion loss | Singlemode | PC≤0.3dB | UPC≤0.2dB | APC ≤0.3dB |
Multimode | PC≤0.3dB | UPC≤0.3dB | APC ≤0.3dB |
Return loss | Singlemode | PC≥50dB | UPC≥50dB | APC ≥60dB |
Multimode | PC≥50dB | UPC≥50dB | APC ≥50dB |
Reparability | ≤0.1dB |
Changeability | ≤0.2dB |
Working temperature | -40 to +80°C |
Durability | 1000 times |
Sustain tension | ≥100N |
Fiber | 9/125um , 50/125um, 62.5/125um, OM3 |
Diameter | 0.9mm, 1.8mm, 2.0mm 3.0mm, etc. |
Cable material | PVC, LSZH, Plenum |
Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores, etc. |
Ordering Information:
DIN/PC-DIN/PC-SM-SX-3.0-2M
① ② ① ② ③ ④ ⑤ ⑥
①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
②Ferrule End-face: PC, UPC, APC
③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④Cable Quantity: “DX” means Duplex / “SX” means Simplex
⑤Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥Cable Length: 1, 2, 3 meter or customized
⑦Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
Product Tags:
|
|

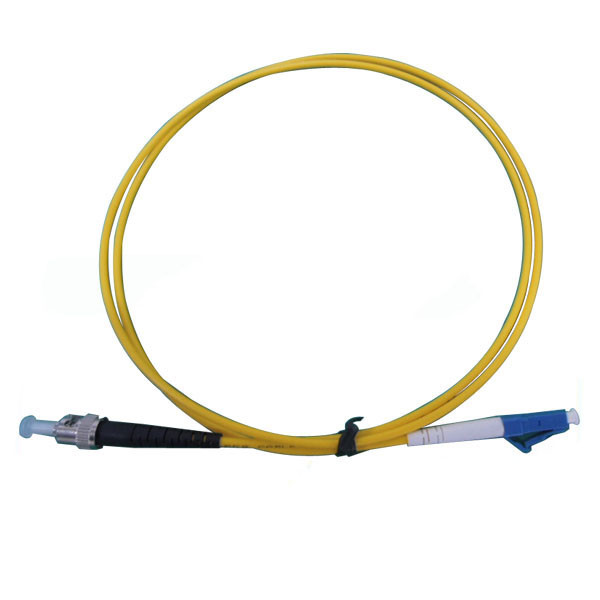

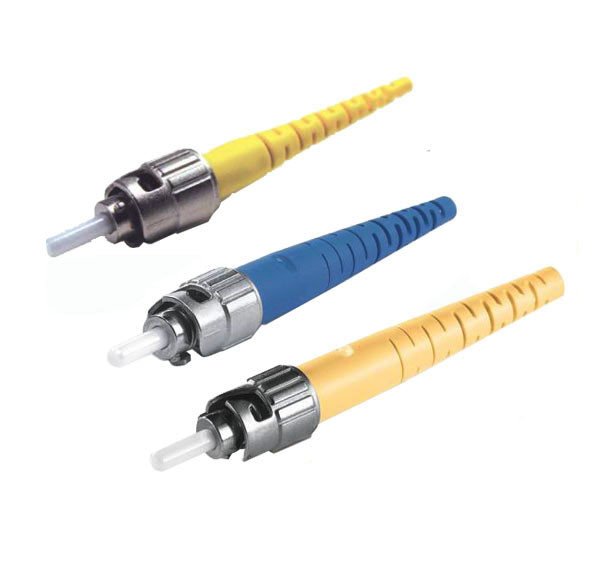

Screw-thread coupling mechanism single or duplex mode available DIN Fiber Optic Patch Cord Images
|
