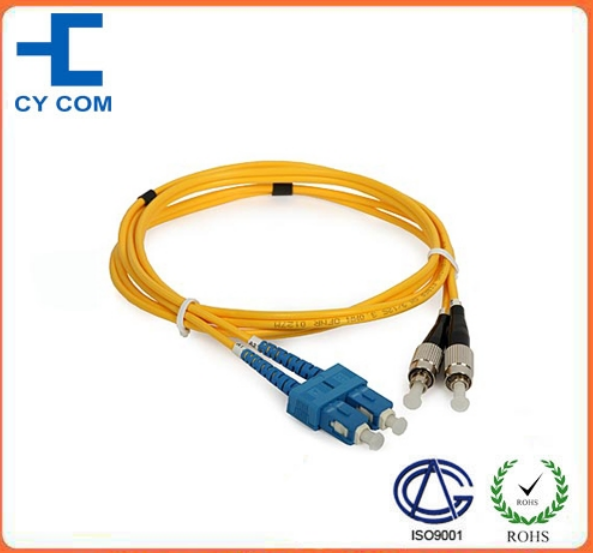

Custom 1M , 3M , 5M Fiber Optic Patch Cord FC SC Single Mode Duplex
Quick Details
Connector:SC,LC,FC,ST,E2000,MTRJ,MU,MPO,DIN
Type:Singlemode or Multimode
Ferrule end-face:UPC,APC
Cable diameter:3.0mm, 2.0mm, 0.9mm, 0.25mm
Cable length:1M, 3M, 5M, customized
Cable Jacket:PVC, LSZH
Description:
High tensile strength,flexible SC/PC-FC-DX Fiber optic patch cord,insertion loss≤0.2db,have a high quality polished 100%test.
Application:
Usage:Testing equipment,FTTX+LAN,Optical fiber CATV,Optical communication system,
Telecommunication
Specification:
| Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 |
| SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC |
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 |
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 |
| Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 |
Availabilities:
-Full specifications, FC, SC, ST, LC, MTRJ, E2000, DIN, D4, SMA, etc.
-Simplex and Duplex assemblies available
-Singlemode and multimode available
-PC, UPC and APC polishing available
-Hybrid patch cords are available upon request
-Fan-out available (Ribbon type / bundle type)
-Pigtail available
-Loopback available
-Customized lengths upon request
-100% tested before shipping
Competitive Advantage:
Factory Guarantee:
1. As we are factory, we can guarantee our price is first-hand, very cheap and competitive.
2.To develop advanced technology ,we have built a stable relationship with scientific research center for
fiber optical component home and abroad. with a capacity of 200,000 pieces per month .Our products
enjoy great reputation for their advanced and precise quality worldwide.
Quality Advantage:
1.We set up a strict quality guarantee system according to the requirments of international management
standard ISO9001:2008.
2.We have not received complaints from customers on product quality right now.
service advantage:
1.To cater for different requirement from our customers, we offer various OEM service.
2.We constantly seek enabling technologies and solutions to help our customers cope with ever changing
environment and requirements.
