FC-FC Fiber Optic Patch Cord Single Mode Duplex

Name: FCFC Fiber Optic Patch Cord Single Mode Duplex
Brand: CY COM
Price: 1 USD

Wholesale FC-FC Fiber Optic Patch Cord Single Mode Duplex from china suppliers

Place of Origin : Shenzhen , China

Brand Name : CY COM

Certification : ISO9001:2015 , RoHS

Model Number : FC-FC SM DX

MOQ : 20

Packaging Details : PE bag

Delivery Time : 3-15 days

Payment Terms : L/C,T/T,Western Union payments for offline orders.

Supply Ability : 1 million connector / month

Features : High credibility and stability

Product Name : Fiber Optic Patch Cord

Type : Singlemode Or Multimode

Application : FTTH , CATV, LAN, MAN, WAN, Test &Measuremen

Cable Length : 1M, 3M, 5M, Customized

Ferrule End-face : UPC,APC

Contact Now

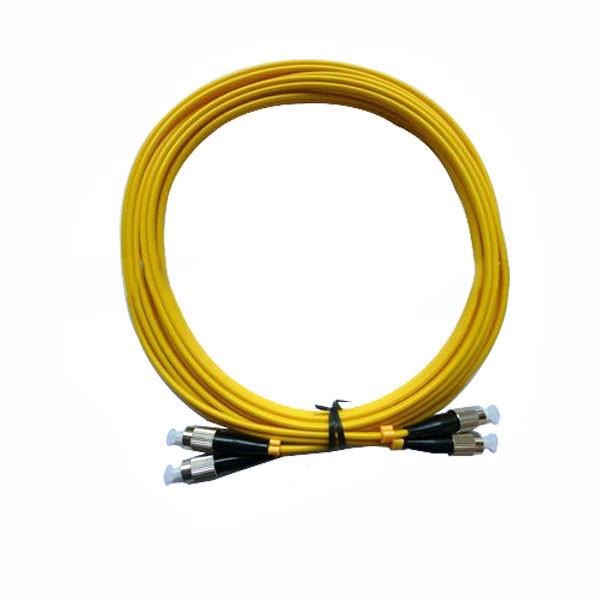

FC-FC Fiber Optic Patch Cord Single Mode Duplex

FC fiber optic patch cords are with FC fiber optic connectors, which is a screw type connection. FC stands for Fixed Connection. It is fixed by way of threaded barrel housing. FC connectors are generally constructed with a metal housing and are nickel-plated.

Features:

Low insertion loss, high return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability

Application:

1.FTTH , CATV, LAN, MAN, WAN, Test &Measuremen

2.Video transmission , Data transmission

3.Active Device Termination

4.Premise Installations

5.Telecommunication and Data processing Networks

6.Industrial, medical & military

7.Systems Integration for Long Haul, Metro and Access Network

Specification:

Parameter

Unit

FC, SC, LC

ST, MU

MT-RJ, MPO

E2000

UPC

APC

UPC

APC

Insertion loss(typical)

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

Return loss

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

1310, 1510

Exchangeability

≤0.2

Vibration

≤0.2

Operating temperature

℃

-40~75

Storage temperature

℃

-45~85

Cable diameter

φ3.0, φ2.0, φ0.9

FC-FC Fiber Optic Patch Cord Single Mode Duplex
